Key Features
● UWB positioning communication
● Integrated RFID*
● SOS alarm
● E-ink screen
Description

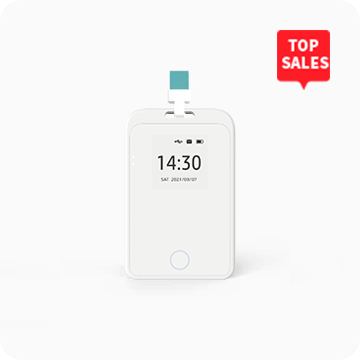

UbiTrack-TB3 is a second generation positioning badge which is small and handy. It is used for personnel positioning and it supports UWB positioning communication. The badge supports tracking, motion detection and SOS one-click alarm, and it can also be equipped with an optional e-ink screen to display detailed personnel information, notification information and so on.
USE case
Our ready-to-use products include wireless tracking badges and tamper-proof wristbands, they are ideal for use in hospitals, smart buildings and prisons.

Custody Monitoring

Hospitals & Care Homes

Industrial

Exhibition
Specifications

UWB Operating Frequency: 3.5GHz-6.5GHz

UWB Transmitting Power: 0-33.5dB (Adjustable)

NFC Operating Frequency*: 13.56MHz

Additional Sensors: Acceleration Sensor

Optional E-Ink Screen: 1.14”×1.14”(29mmx29mm)

Stand-by Power Consumption: 0.19mW

Optional Functions: Messages, vibration , RFID*, SOS, etc.

Power Supply: Rechargeable 400mAh lithium battery

Battery Life: 1-2 months(1Hz)

Dimensions: 3.50”×2.28”×0.27”(89mmx58mmx6.9mm)

Operating Temperature: -20ºC to 55ºC

Operating Humidity: 10-90%
*Optional features
